• Durabed, pickup bed
• Air filter, heavy-duty
• Air filtration monitoring
• Transfer case, two-speed electronic shift with push button controls (Requires 4WD models.)
• Auto-locking rear differential
• Four wheel drive
• Frame, fully-boxed, hydroformed front section and a fully-boxed stamped rear section
• Recovery hooks, front, frame-mounted, Black (Not included when (VQY) Chrome recovery hooks, LPO is ordered.)
• Suspension Package
• Steering, Recirculating Ball with smart flow power steering system
• Brakes, 4-wheel antilock, 4-wheel disc with DURALIFE rotors
• Brake lining wear indicator

• Wheels, 20" (50.8 cm) machined aluminum with Grazen Metallic painted accents, 10-spoke
• Tires, LT275/65R20 all-terrain, blackwall
• Tire, spare LT275/70R18 all-terrain, blackwall
• Tire carrier lock keyed cylinder lock that utilizes same key as ignition and door
• Bumper, front (High gloss Black.)
• Bumper, rear (High gloss Black.)
• CornerStep, rear bumper
• BedStep, Black integrated on forward portion of bed on driver and passenger side
• Moldings, beltline, Black
• Cargo tie downs (12), fixed rated at 500 lbs per corner
• Grille (Front grille bar with "CHEVROLET" painted body color. Includes body color surround and Black mesh inserts with small Gold bowtie emblem.)
• Headlamps, halogen reflector with halogen Daytime Running Lamps
• Taillamps, LED with signature
• Lamps, cargo area, cab mounted integrated with center high mount stop lamp, with switch in bank on left side of steering wheel.
• Mirrors, outside power-adjustable vertical trailering with heated upper glass, lower convex mirrors, integrated turn signals, manual folding/extending (extends 3.31" [84.25mm])
• Mirror caps, Black
• Glass, deep-tinted
• Tailgate and bed rail protection cap, top
• Tailgate, locking, utilizes same key as ignition and door (Upgraded to (QT5) EZ Lift power lock and release tailgate when (PCX) Custom Convenience Package is ordered.)
• Tailgate, gate function manual, no EZ Lift
• Door handles, Black grained

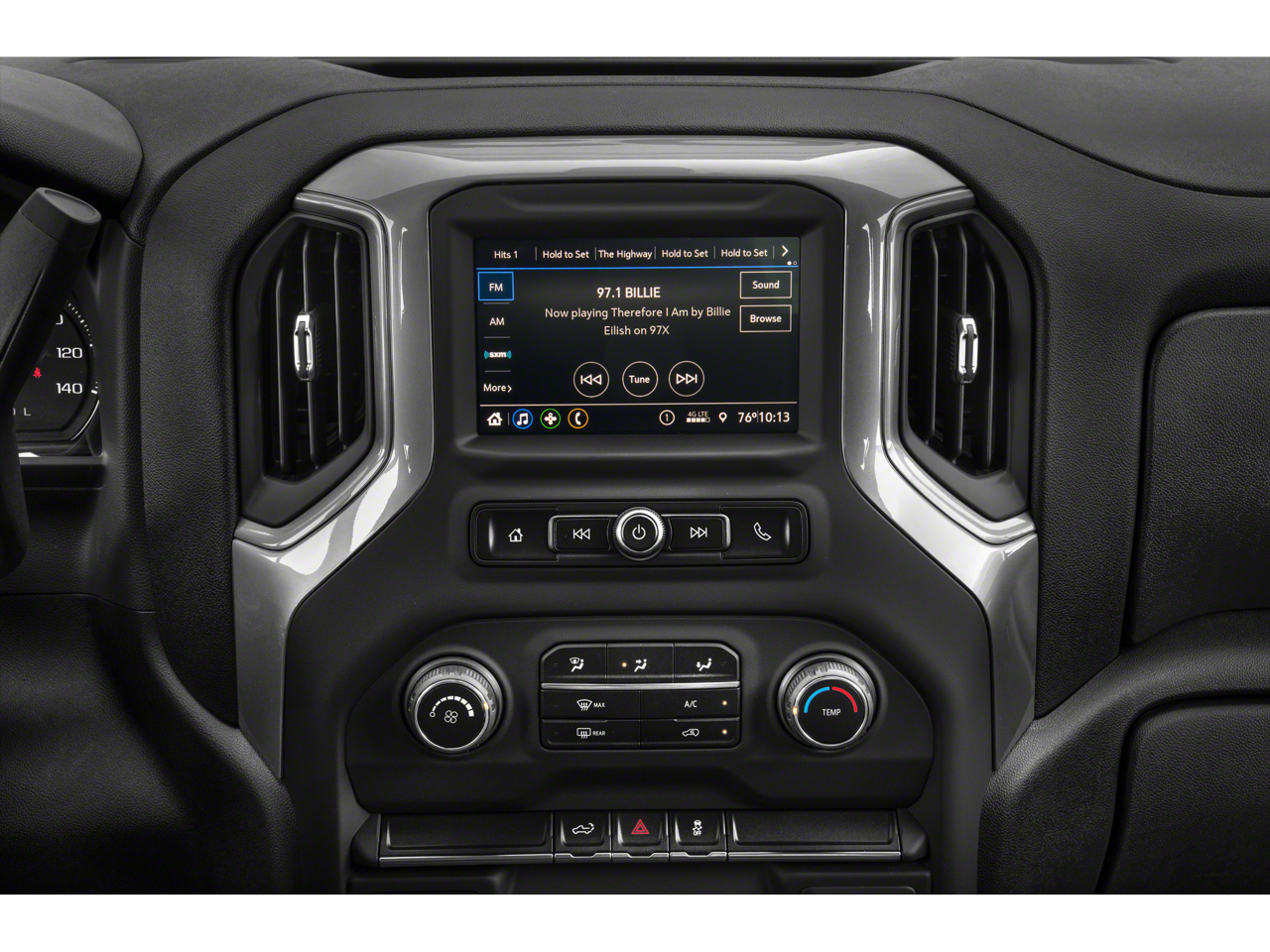

• Audio system, Chevrolet Infotainment 3 system 7" diagonal color touchscreen, AM/FM stereo. Additional features for compatible phones include: Bluetooth® audio streaming for 2 active devices, voice command pass-through to phone, wired Apple CarPlay and Android Auto capable.
• Audio system feature, 6-speaker system
• Bluetooth® for phone connectivity to vehicle infotainment system

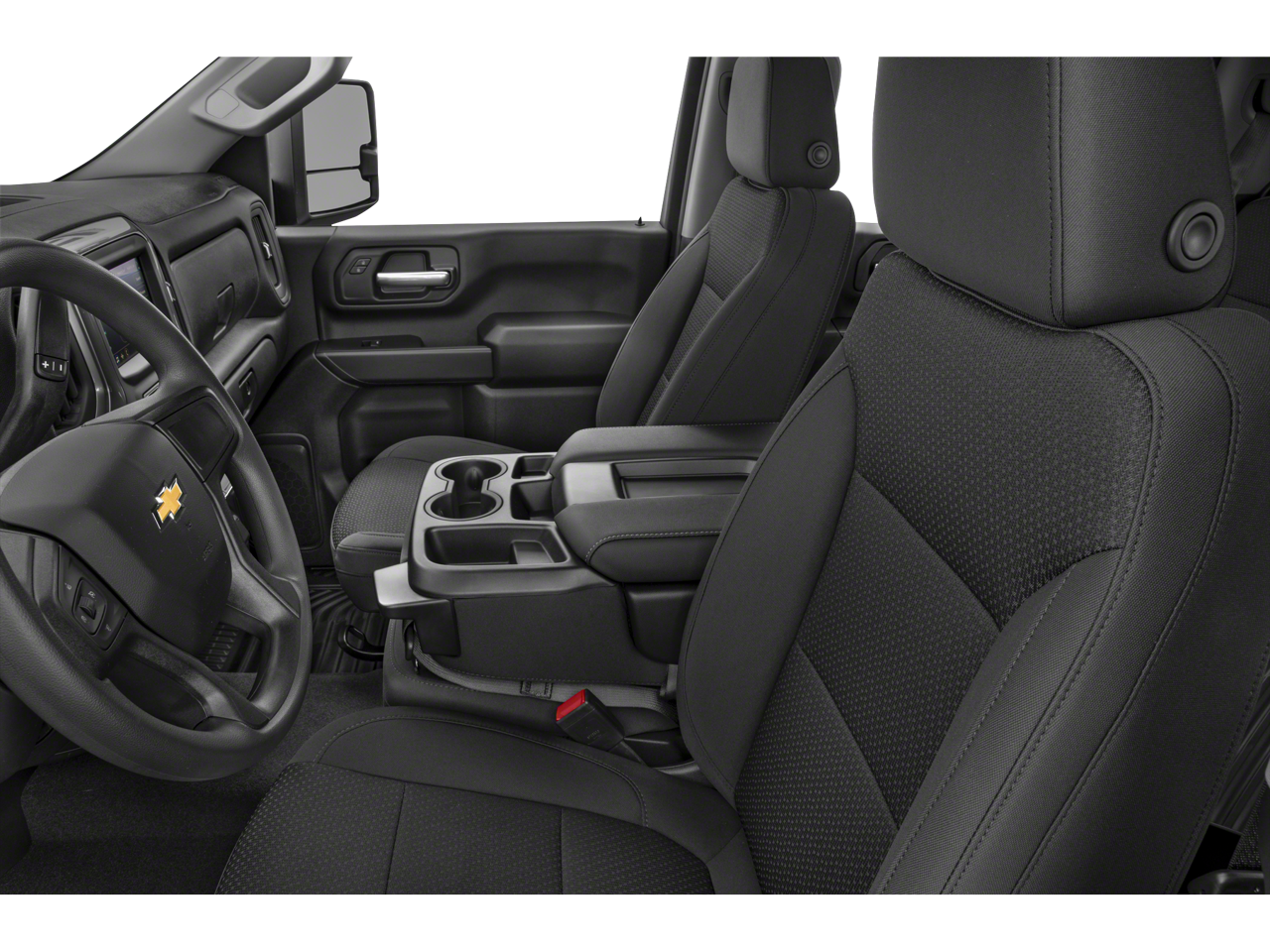

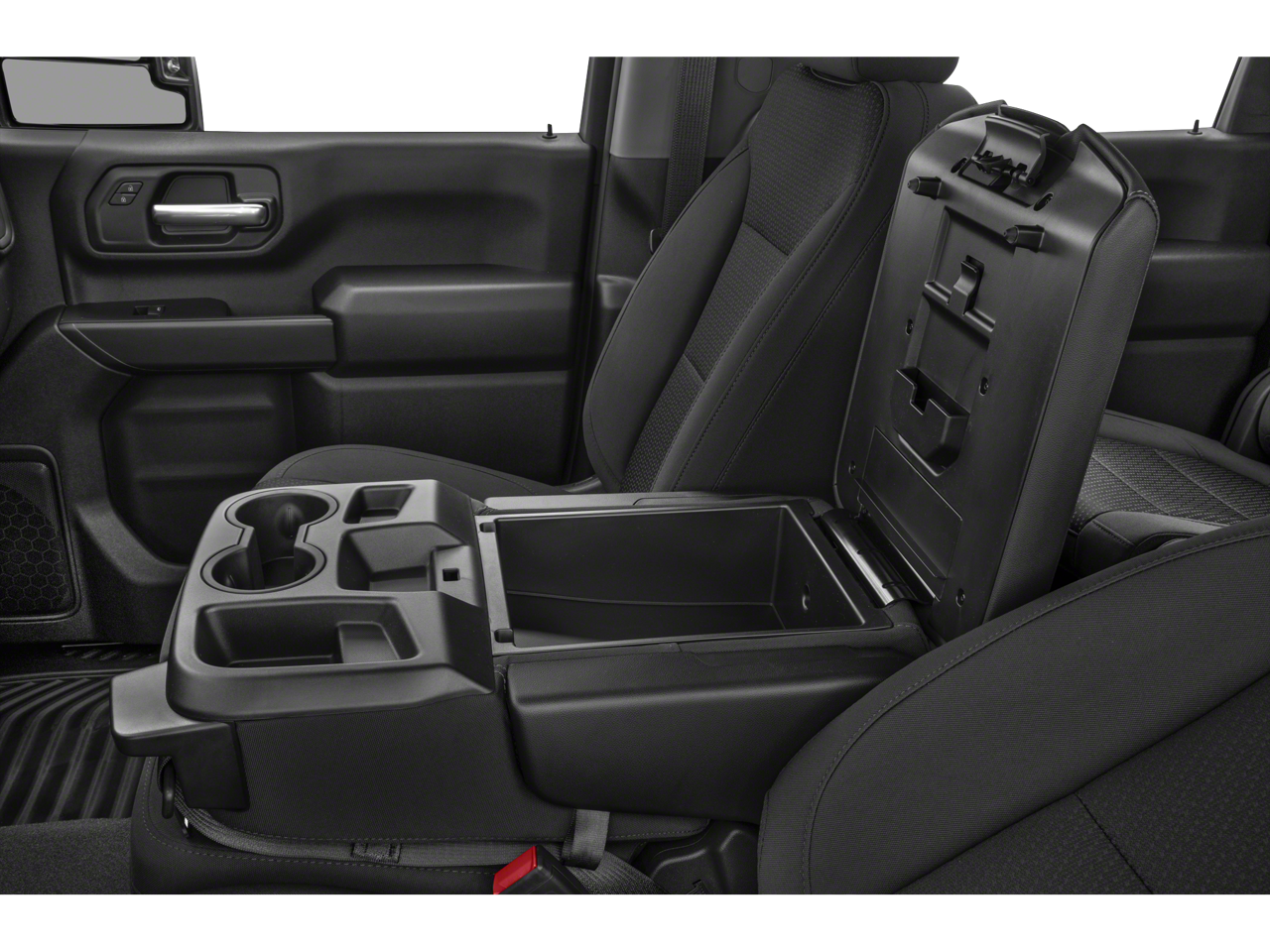

• Seats, front 40/20/40 split-bench with upper covered armrest storage
• Cloth seat trim
• Seat adjuster, driver 4-way manual
• Seat adjuster, passenger 4-way manual

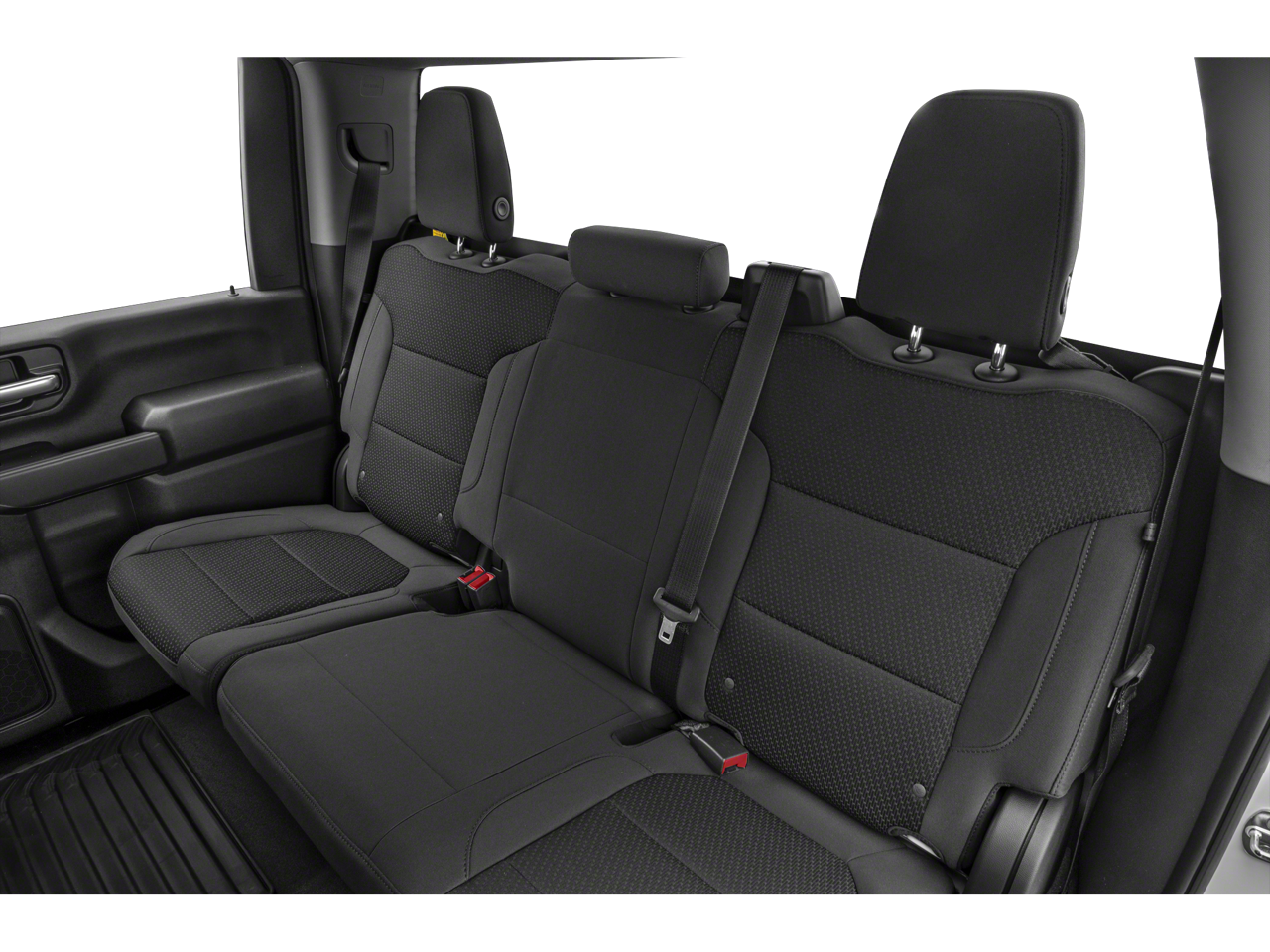

• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor)
• Floor covering, color-keyed carpeting
• Floor mats, rubberized vinyl, front (Deleted when LPO floor liners are ordered.)
• Floor mats, rubberized-vinyl rear (Deleted when LPO floor liners are ordered.)

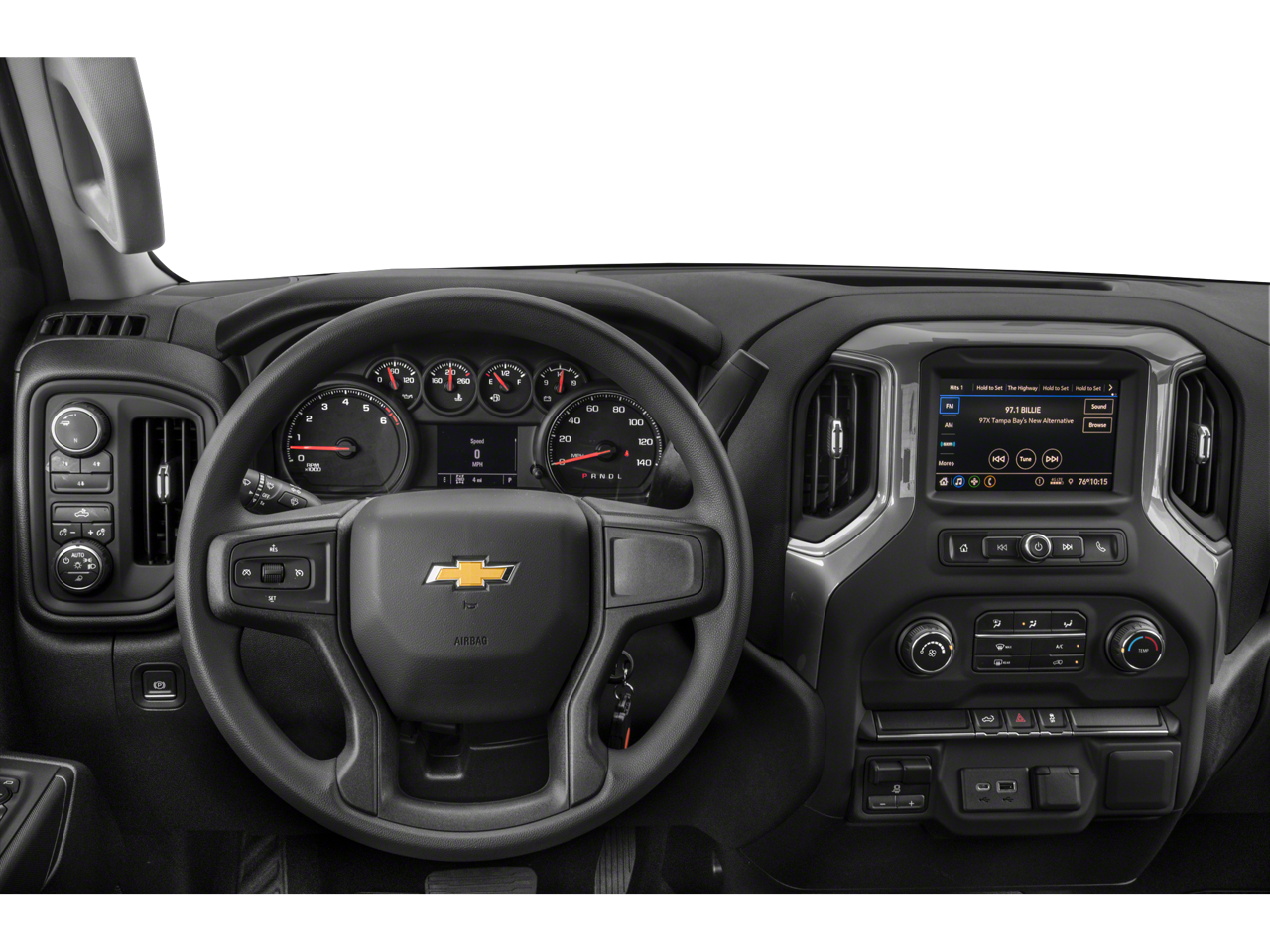

• Steering wheel, urethane
• Steering column, Tilt-Wheel, manual with wheel locking security feature
• Driver Information Center, 3.5" diagonal monochromatic display
• Exterior Temperature Display located in radio display
• Rear Seat Reminder
• Window, power front, drivers express up/down
• Window, power front, passenger express down
• Windows, power rear, express down
• Door locks, power
• Remote Keyless Entry with 2 transmitters
• Cruise control, electronic with set and resume speed, steering wheel-mounted
• USB ports, 2 (first row) located on instrument panel
• Power outlet, front auxiliary, 12-volt
• Air conditioning, single-zone
• Air vents, rear, heating/cooling
• Mirror, inside rearview, manual tilt
• Assist handles front A-pillar mounted for driver and passenger, rear B-pillar mounted

• StabiliTrak stability control system with Proactive Roll Avoidance and traction control, includes electronic trailer sway control and hill start assist
• Daytime Running Lamps with automatic exterior lamp control
• Airbags, Dual-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; Includes front outboard Passenger Sensing System for frontal outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Rear Vision Camera
• Hitch Guidance dynamic single line to aid in trailer alignment for hitching
• Teen Driver a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to help encourage safe driving behavior. It can limit certain available vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report card gives you information on driving habits and helps you to continue to coach your new driver
• Tire Pressure Monitoring System with Tire Fill Alert (does not apply to spare tire)

• Trailering Information Label provides max trailer ratings for tongue weight, conventional, gooseneck and 5th wheel trailering

SEATS, FRONT 40/20/40 SPLIT-BENCH

• with upper covered armrest storage (STD)

CHEVYTEC SPRAY-ON BEDLINER

• Black with Chevrolet logo (does not include spray-on liner on tailgate due to Black composite inner panel)

AUDIO SYSTEM, CHEVROLET INFOTAINMENT 3 SYSTEM

• 7" diagonal color touchscreen
• AM/FM stereo. Additional features for compatible phones include: Bluetooth® audio streaming for 2 active devices
• voice command pass-through to phone
• wired Apple CarPlay and Android Auto capable. (STD)

CUSTOM VALUE PACKAGE

• includes (PCX) Custom Convenience Package
• (ZLA) Infotainment Package
• (DWI) outside power-adjustable vertical trailering mirrors with heated and auto-dimming upper glass
• lower convex spotter mirrors
• turn signal indicators
• puddle lamps
• perimeter lighting and power folding/manual extending and (DD8) auto-dimming rearview mirror

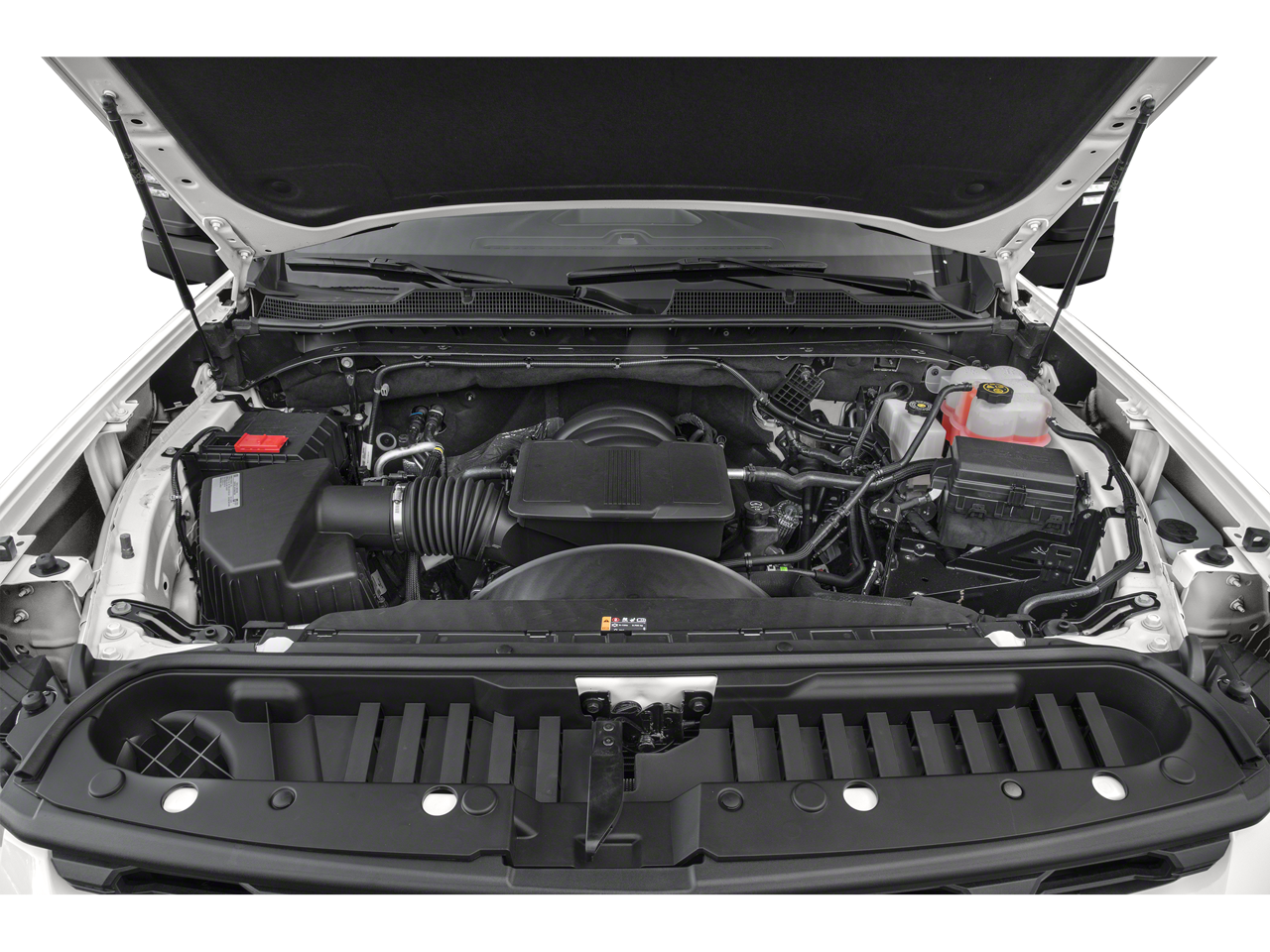

ENGINE, 6.6L V8

• with Direct Injection and Variable Valve Timing
• gasoline
• (401 hp [299 kW] @ 5200 rpm
• 464 lb-ft of torque [629 N-m] @ 4000 rpm) (STD)

CUSTOM CONVENIENCE PACKAGE

• includes (BTV) Remote Start
• (C49) rear-window defogger
• (UF2) bed LED cargo area lighting
• (QT5) EZ Lift power lock and release tailgate and (JL1) Trailer brake controller

TRANSMISSION, 6-SPEED AUTOMATIC, HEAVY-DUTY

• (STD)

GOOSENECK/5TH WHEEL PREP PACKAGE

• Hitch platform to accept Gooseneck or 5th Wheel hitch. Includes hitch platform with tray to accept ball
• stamped bed holes with removable caps installed and bed mounted 7-pin trailer harness (similar to UY2 harness).

INFOTAINMENT PACKAGE

• includes (U2K) SiriusXM Radio and (UE1) OnStar

SIRIUSXM RADIO

• enjoy an All Access trial subscription with over 150 channels including commercial-free music
• plus sports
• news and entertainment. Plus listening on the SiriusXM app
• online and at home on compatible connected devices is included
• so you'll hear the best SiriusXM has to offer
• anywhere life takes you. Welcome to the world of SiriusXM.

LED CARGO AREA LIGHTING

• located in pickup bed
• activated with switch on center switch bank or key fob

CUSTOM PREFERRED EQUIPMENT GROUP

• includes standard equipment

• REMOTE VEHICLE STARTER SYSTEM
• CUSTOM VALUE PACKAGE includes (PCX) Custom Convenience Package (ZLA) Infotainment Package (DWI) outside power-adjustable vertical trailering mirrors with heated and auto-dimming upper glass lower convex spotter mirrors turn signal indicators puddle lamps perimeter lighting and power folding/manual extending and (DD8) auto-dimming rearview mirror
• ENGINE 6.6L V8 with Direct Injection and Variable Valve Timing gasoline (401 hp [299 kW] @ 5200 rpm 464 lb-ft of torque [629 N-m] @ 4000 rpm) (STD)
• TAILGATE GATE FUNCTION MANUAL WITH EZ LIFT includes power lock and release
• ONSTAR AND CHEVROLET CONNECTED SERVICES CAPABLE
• DEFOGGER REAR-WINDOW ELECTRIC
• CUSTOM CONVENIENCE PACKAGE includes (BTV) Remote Start (C49) rear-window defogger (UF2) bed LED cargo area lighting (QT5) EZ Lift power lock and release tailgate and (JL1) Trailer brake controller
• ENGINE BLOCK HEATER
• MIRROR INSIDE REARVIEW AUTO-DIMMING
• GOOSENECK/5TH WHEEL PACKAGE includes (Z6A) Gooseneck/5th Wheel Prep Package (Includes (JL1) Trailer brake controller and (CGN) Chevytec spray-on bedliner.)
• TRAILER BRAKE CONTROLLER INTEGRATED
• REAR AXLE 3.73 RATIO
• LICENSE PLATE KIT FRONT
• TRANSMISSION 6-SPEED AUTOMATIC HEAVY-DUTY (STD)
• CHEVYTEC SPRAY-ON BEDLINER Black with Chevrolet logo (does not include spray-on liner on tailgate due to Black composite inner panel)
• 4G LTE WI-FI HOTSPOT CAPABLE
• MIRRORS OUTSIDE POWER-ADJUSTABLE VERTICAL TRAILERING WITH HEATED AND AUTO-DIMMING UPPER GLASS lower convex mirrors turn signal indicators puddle lamps perimeter lighting auxiliary lighting power folding/manual extending (extends 3.31 [84.25mm]) Includes (DD8) auto-dimming rearview mirror.
• GOOSENECK/5TH WHEEL PREP PACKAGE Hitch platform to accept Gooseneck or 5th Wheel hitch. Includes hitch platform with tray to accept ball stamped bed holes with removable caps installed and bed mounted 7-pin trailer harness (similar to UY2 harness).
• ALTERNATOR 220 AMPS
• INFOTAINMENT PACKAGE includes (U2K) SiriusXM Radio and (UE1) OnStar
• SILVER ICE METALLIC
• SEATS FRONT 40/20/40 SPLIT-BENCH with upper covered armrest storage (STD)
• JET BLACK CLOTH SEAT TRIM
• AUDIO SYSTEM CHEVROLET INFOTAINMENT 3 SYSTEM 7 diagonal color touchscreen AM/FM stereo. Additional features for compatible phones include: Bluetooth® audio streaming for 2 active devices voice command pass-through to phone wired Apple CarPlay and Android Auto capable. (STD)
• LAMPS SMOKED AMBER ROOF MARKER (LED)
• SIRIUSXM RADIO enjoy an All Access trial subscription with over 150 channels including commercial-free music plus sports news and entertainment. Plus listening on the SiriusXM app online and at home on compatible connected devices is included so you'll hear the best SiriusXM has to offer anywhere life takes you. Welcome to the world of SiriusXM.
• LED CARGO AREA LIGHTING located in pickup bed activated with switch on center switch bank or key fob
• CUSTOM PREFERRED EQUIPMENT GROUP includes standard equipment
• GVWR 10 650 LBS. (4831 KG)
• Tow Hitch
• Locking/Limited Slip Differential
• Four Wheel Drive
• Tow Hooks
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Aluminum Wheels
• Tires - Front All-Terrain
• Tires - Rear All-Terrain
• Conventional Spare Tire
• Daytime Running Lights
• Heated Mirrors
• Power Mirror(s)
• Integrated Turn Signal Mirrors
• Privacy Glass
• AM/FM Stereo
• MP3 Capability
• Bluetooth® Connection
• Auxiliary Audio Input
• Smart Device Integration
• Bluetooth® Connection
• Split Bench Seat
• Cloth Seats
• Pass-Through Rear Seat
• Rear Bench Seat
• Floor Mats
• Floor Mats
• Adjustable Steering Wheel
• Power Windows
• Power Windows
• Power Door Locks
• Keyless Entry
• Power Door Locks
• Cruise Control
• MP3 Capability
• Auxiliary Audio Input
• Power Outlet
• A/C
• A/C
• Rear A/C
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Front Side Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Passenger Air Bag Sensor
• Back-Up Camera
• Driver Restriction Features
• Tire Pressure Monitor

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Maximum Alternator Capacity (amps): 220
• Maximum Alternator Capacity (amps): 170
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 6600
• Curb Weight - Front (lbs): 3849
• Curb Weight - Rear (lbs): 2784
• Gross Vehicle Weight Rating Cap (lbs): 10650
• Gross Combined Wt Rating (lbs): 24000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 14500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1450
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 16650
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4162
• Maximum Trailering Capacity (lbs): 18500
• Suspension
• Suspension Type - Front: Short/Long Arm
• Suspension Type - Rear: Multi-Leaf Springs
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: - TBD -
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Rear (lbs): - TBD -
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 51.0
• Shock Absorber Diameter - Rear (mm): 51.0
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14.0 x 1.6
• Rear Brake Rotor Diam x Thickness (in): 14.1 x 1.3
• Tires
• Front Tire Order Code: QF9
• Rear Tire Order Code: QF9
• Spare Tire Order Code: ZYG
• Front Tire Size: LT275/65R20
• Rear Tire Size: LT275/65R20
• Spare Tire Size: LT275/70R18
• Front Tire Capacity (lbs): 3020
• Rear Tire Capacity (lbs): 3373
• Spare Tire Capacity (lbs): 3638
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 20 x 8.5
• Rear Wheel Size (in): 20 x 8.5
• Spare Wheel Size (in): 18 x 8.0
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 52.7
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 158.94
• Length, Overall (in): 249.95
• Width, Max w/o mirrors (in): 81.85
• Height, Overall (in): 79.82
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): 42.1
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 10.12
• Ground Clearance, Rear (in): 10.12
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 82.25
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 71.4
• Cargo Box Width @ Wheelhousings (in): 51.85
• Cargo Box (Area) Height (in): 21
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 69.5
• Ext'd Cab Cargo Volume (ft³): - TBD -

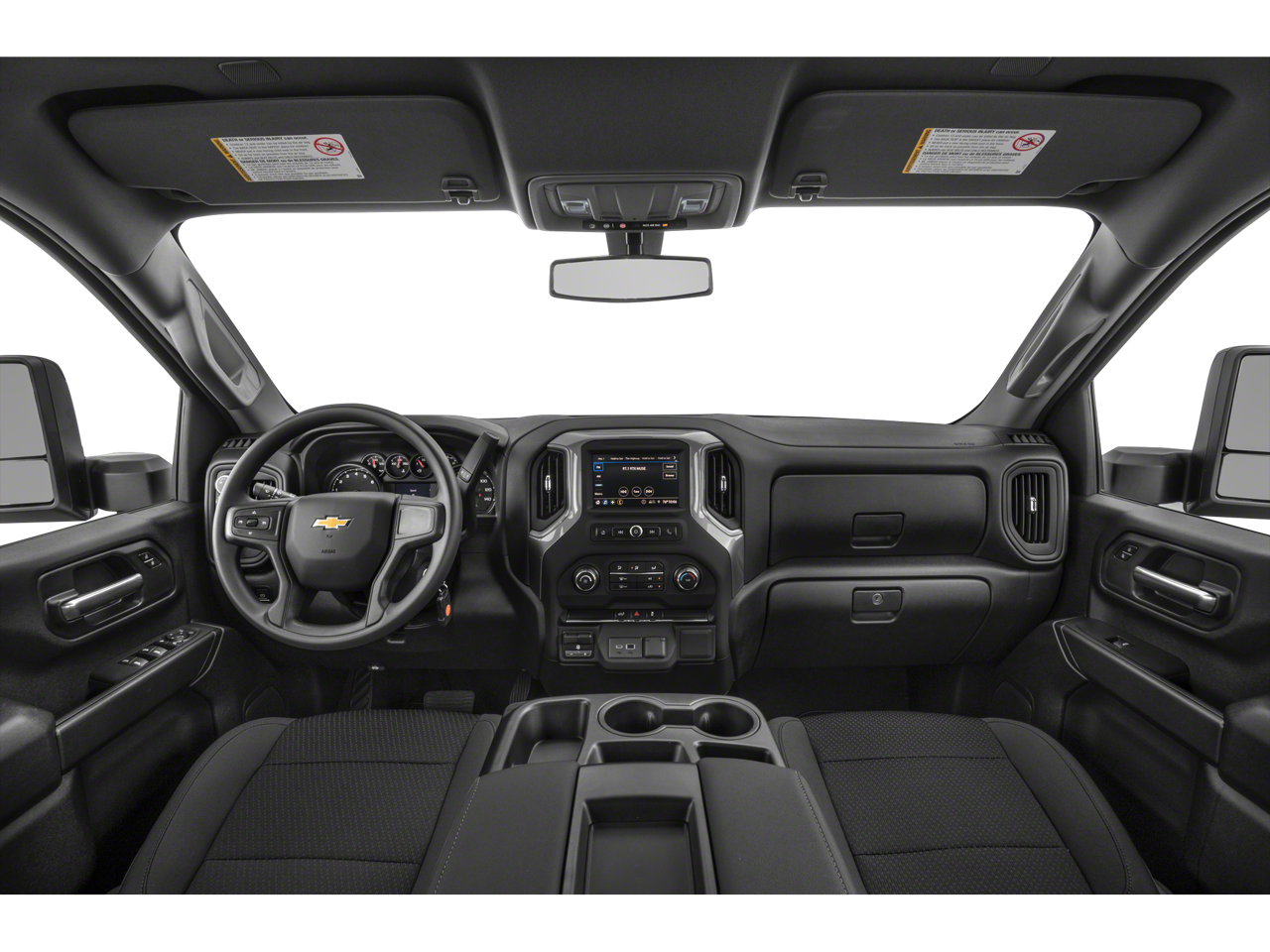

• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 43.03
• Front Leg Room (in): 44.53
• Front Shoulder Room (in): 66.02
• Front Hip Room (in): 61.18
• Second Head Room (in): 40.12
• Second Leg Room (in): 43.4
• Second Shoulder Room (in): 65.3
• Second Hip Room (in): 60.24
• Summary
• Vehicle Name: Chevrolet Silverado 2500HD
• Body Style: Crew Cab Pickup
• Body Code: E63
